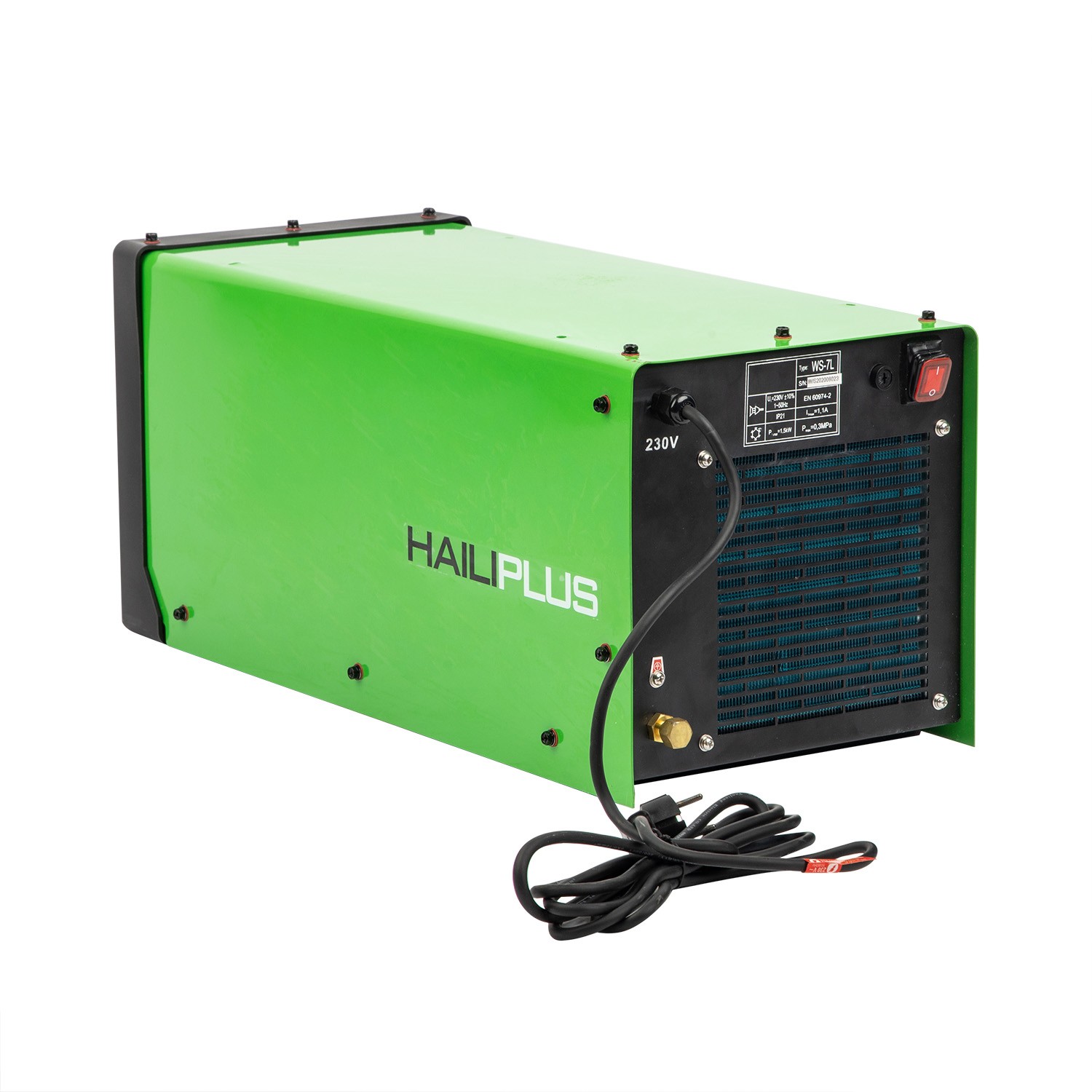

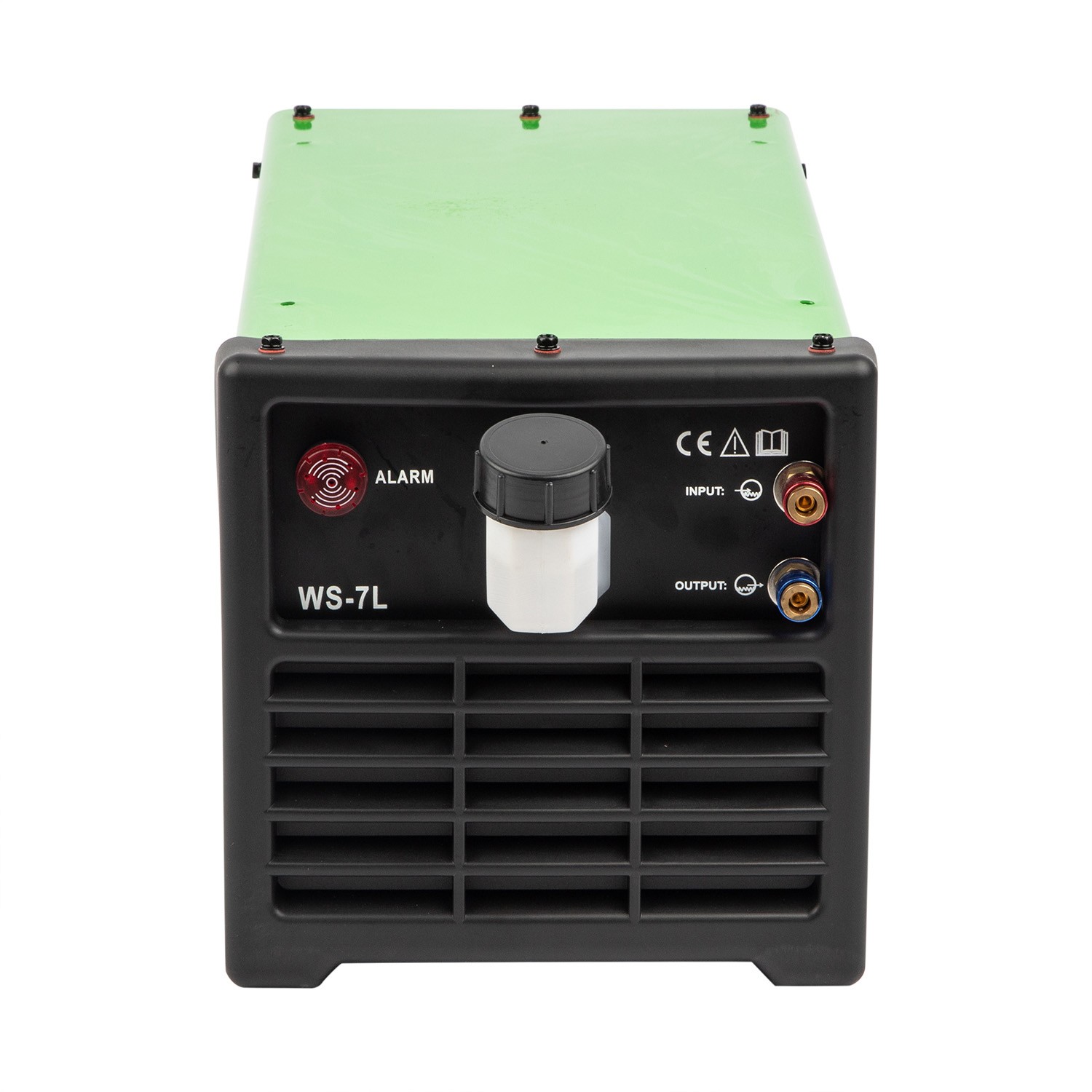

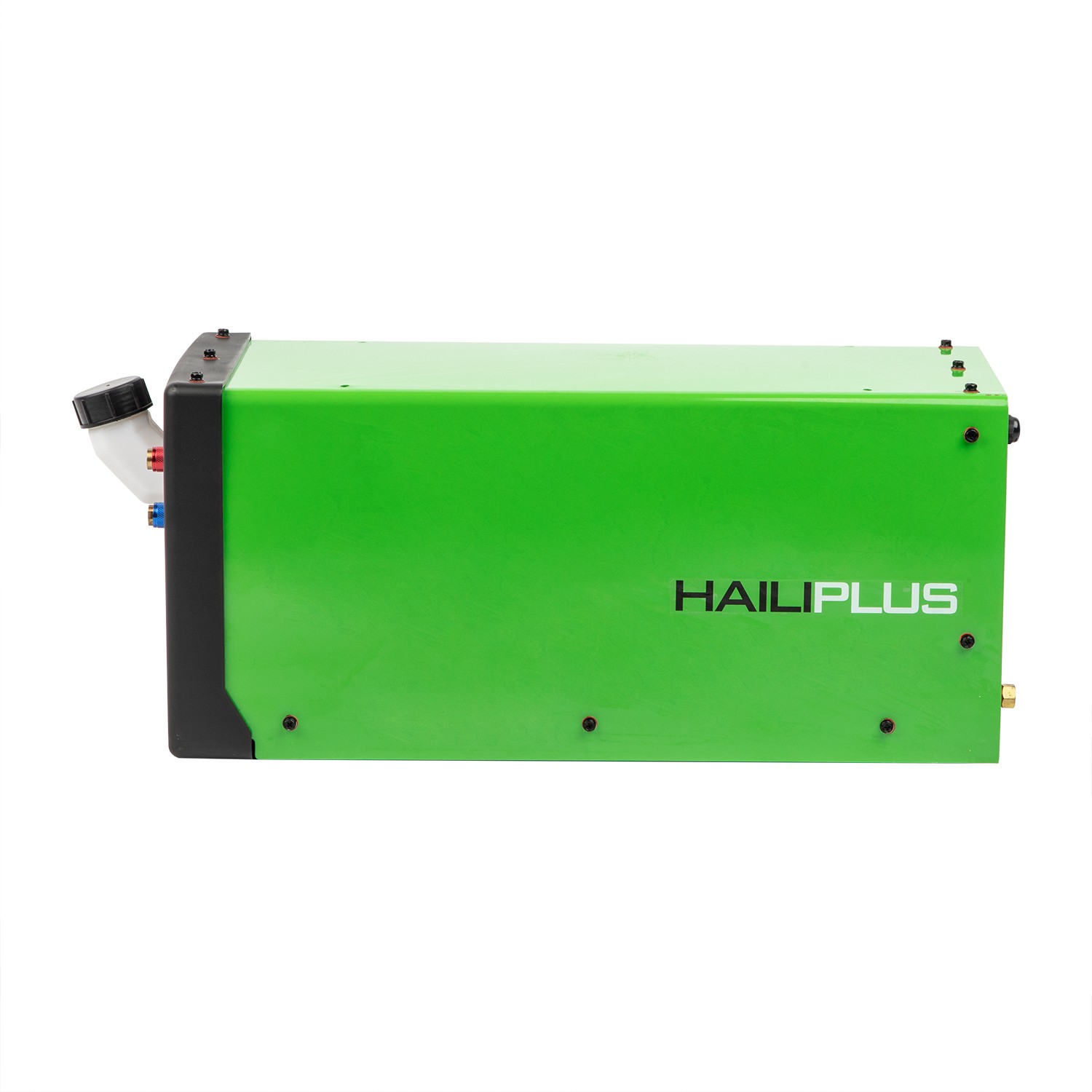

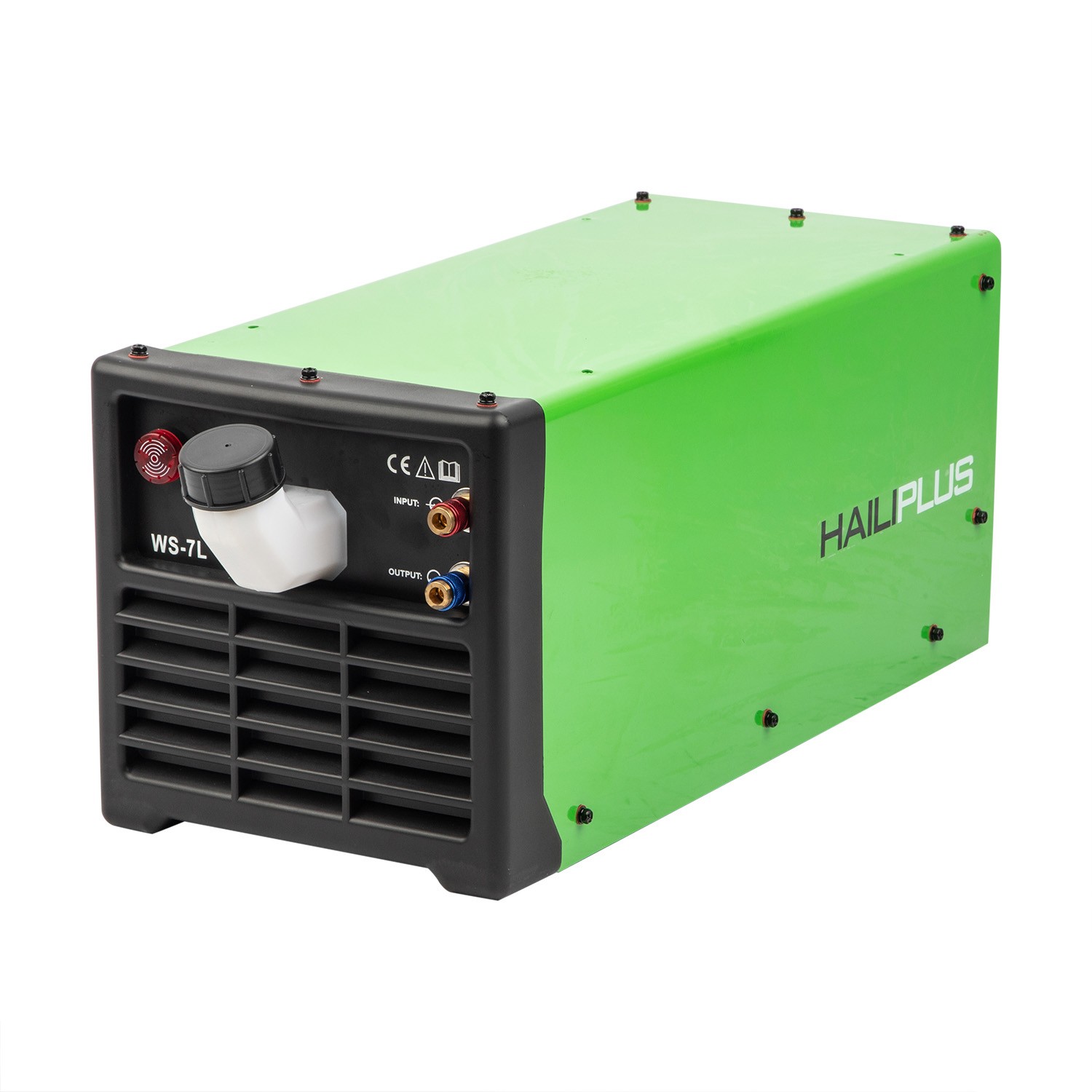

Welding Water Cooler WS-7L

EMAIL

Weld longer without damaging your torch— replace the water in your welding cooler with these coolants to prevent mineral deposits and frozen lines. Coolants also tolerate colder temperatures than water— the more ethylene glycol in the coolant, the lower temperatures it can withstand. For use with MIG, TIG, spot, and stud welders. They are nonconductive.


1), Adopt high class 304 Stainless Steel to make motor head, better corrosion resistance and avoid water scale after long time using.

2), Brass wheel improve fans speed, multi-row copper radiator, unique wind tunnel type cooling design, cooling rate rising more 30% than normal products.

3), Overall shape water tank, using High-Low temperature resistant materials to avoid leaking.

4), Forward filling port, more convenient to water injection; transparent water inspection windows, timely control of water level.

5), World Input Voltage 110V, 220V, 230V, 240V, 400V, 440V can be produced.

6), Waterproof Power Switch, human engineering handle.

7), With complete accessories, 3600 multi-foam packing, high strength master carton to more safe transfer, light weight, easy to move.

Model

WS-7L

WS-8L

WS-10L

WS-12L

Input Voltage

Single Phase 230V±10%

Frequency

50Hz

Cooling Power

1.5KW

1.5KW

1.5KW

1.7KW

Rated Water Flow

7-9L/Min

Pump Power

370W

Max Pressure

0.30-0.35Mpa

Lift Range

30-35Meter

Water Volume

7L

8L

10L

12L

Operating Temperature

-20°C---+60°C

Weight

14Kgs

15Kgs

16Kgs

17Kgs

Measure

485*250*350mm

485*250*350mm

495*250*350mm

530*250*350mm

Parts

2Pcs*3M Water Hose, Connectors and Hose Clamps.

Connector

Quick Connector or Nut Connector can be optional.
