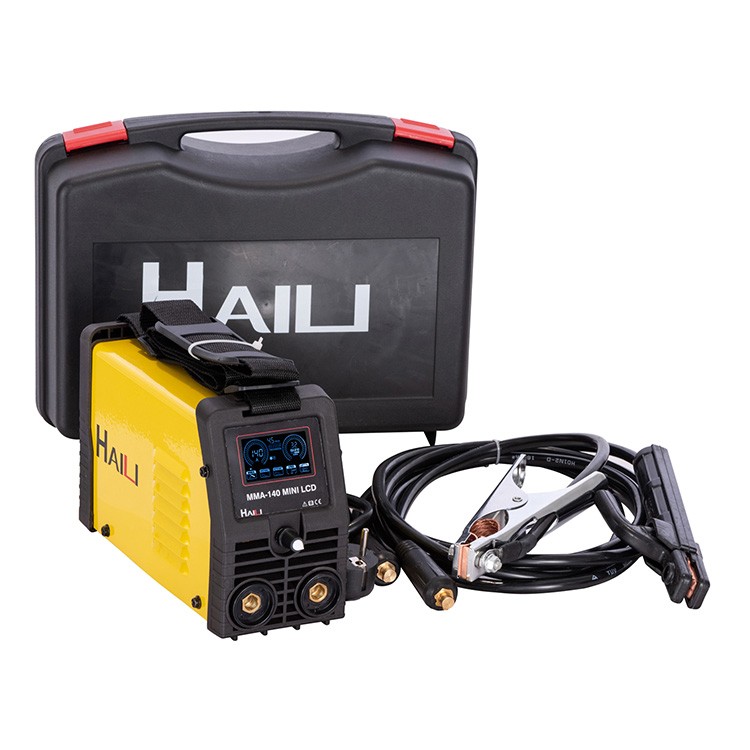

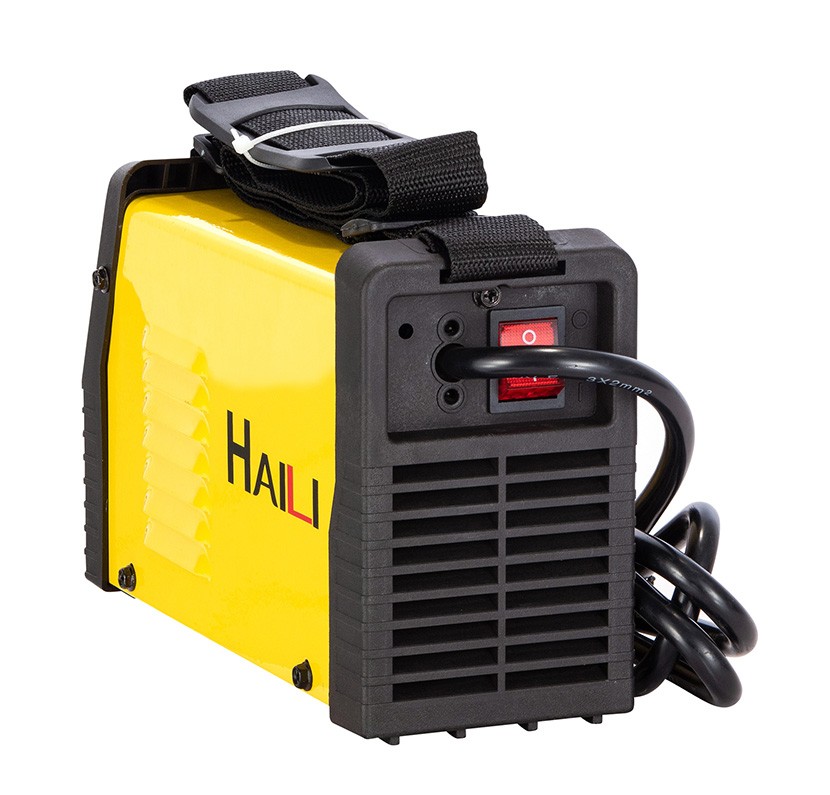

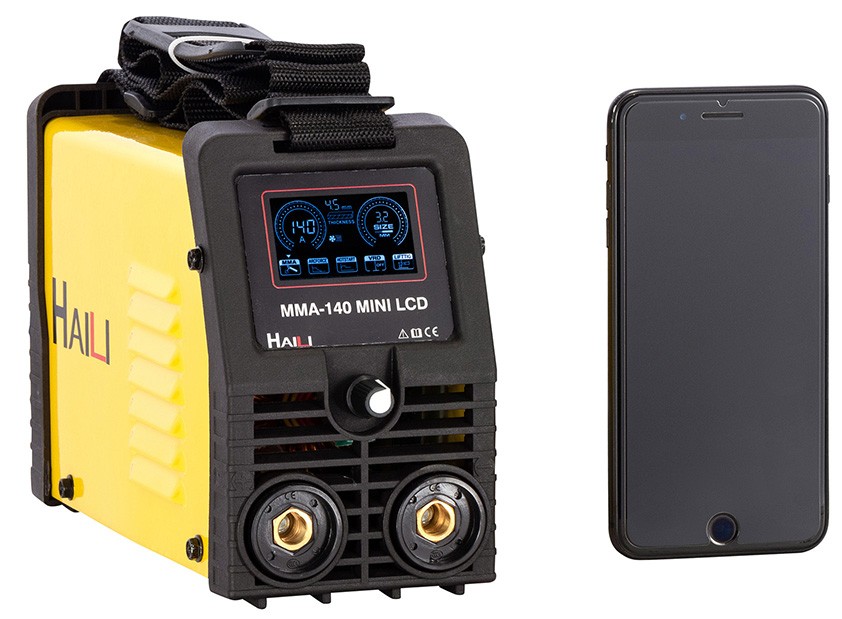

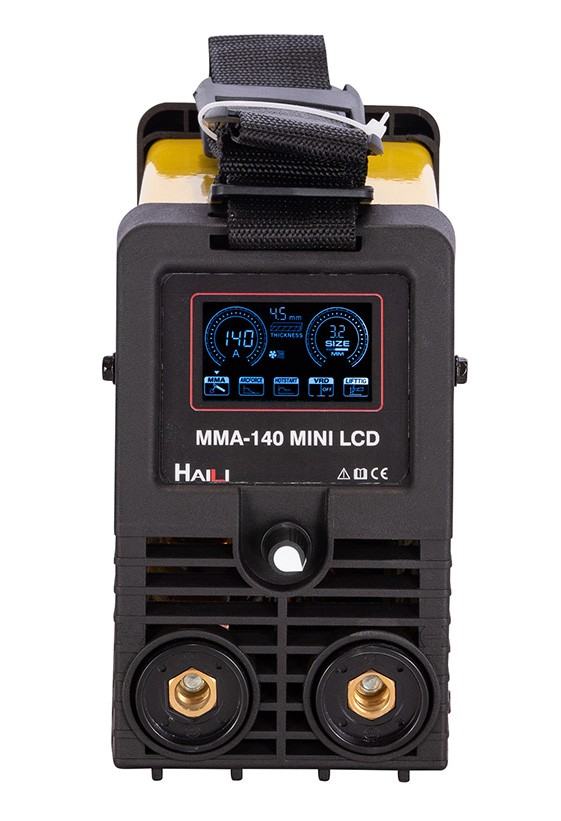

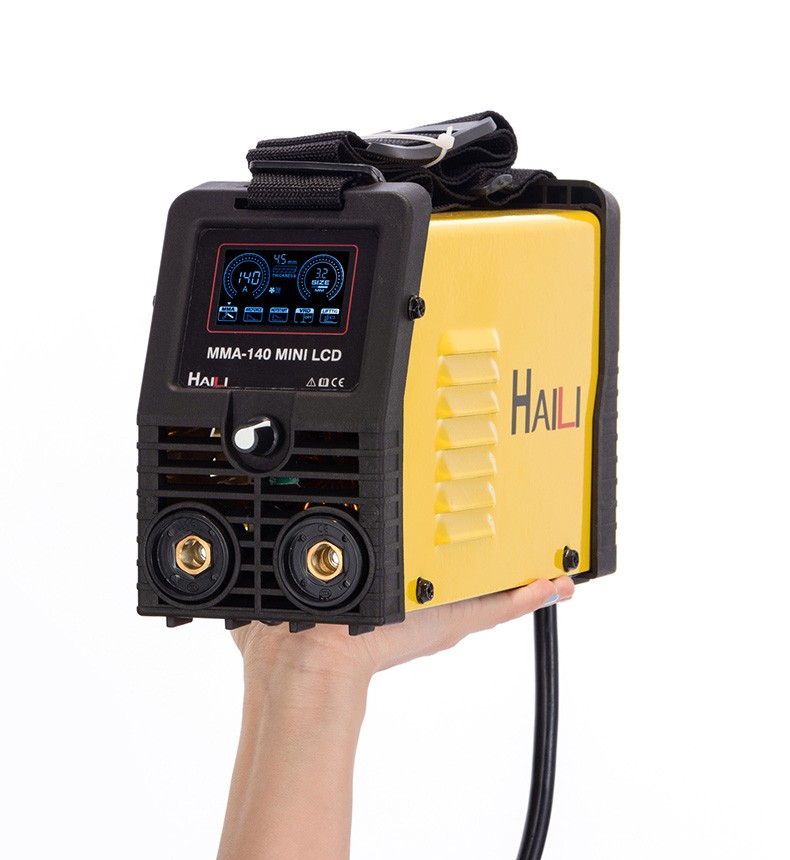

MMA-120 140 MINI LCD

EMAIL

1), Advanced (IGBT) inverter technology and Single PCB structure, high definition LCD 46*27MM,

   Friendly user interface, Synergic electrode 1.6/2.0/2.5/3.2MM, Hot-Start/Anti-Stick/Arc Force and VRD can be adjusted.

2). High efficiency, low consumption, energy saving, more attractive design.

3). Stable performance, with strong compensation capability, resistant to voltage fluctuation.

4). Easy for arc starting less splash, thermostatic control, Automatic over-voltage and over-current protection, fan cooled.

5). Light, compact, easy to operate.

6). Applicable for welding of all kinds of low carbon steel, medium carbon steel and alloy steel. Etc.

7). The smallest design with strong power output.

8), Plastic carrying case can be optional.

Model

MMA-120 MINI LCD

MMA-140 MINI LCD

Order Code

HL-2351ML

HL-2352ML

Input Voltage(V)

220V-240V

220V-240V

Frequency (Hz)

50/60

50/60

Rated Input Capacity (KVA)

4.0

4.7

Power Factor

0.93

0.93

No-load Voltage(V)

56

56

Current Range(A)

20-120

20-140

Rated Duty Cycle (%)

60

60

Usable Electrode (MM)

1.6-3.2

1.6-3.2

Insulation Class

F

F

Protection Degree

IP21

IP21

Dimension (MM)

208*85*132

208*85*132

Weight (Kgs)

2.0

2.0

Accessories

ELECTODE HOLDER WITH 2M CABLE,

EARTH CLAMP WITH 2M CABLE

MOQ

500PCS

500PCS

PRICE






INQUIRY
